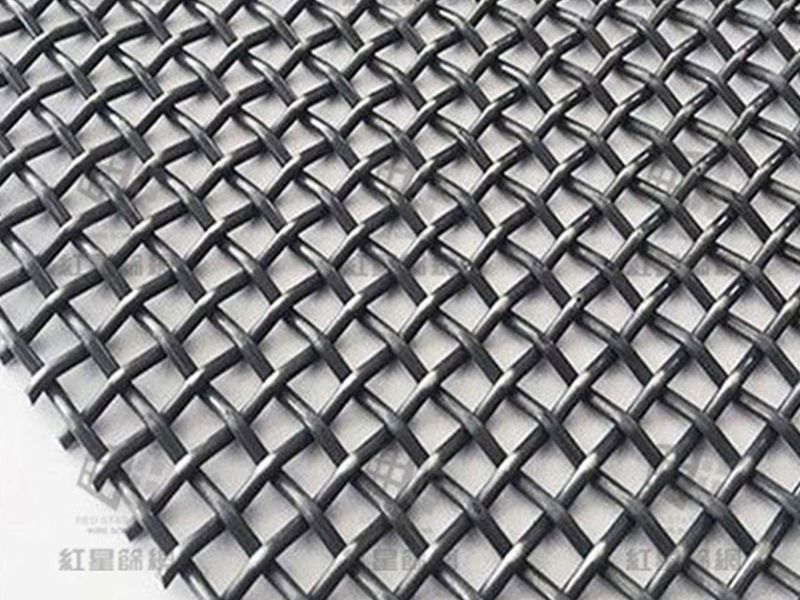

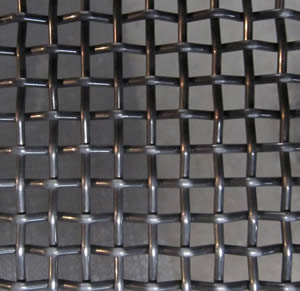

Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.
65Mn is the most common material of the manganese steel vibrating screen mesh.
Manganese steel vibrating screen is high tensile, wear and abrasion resistant and long service life.
Manganese steel vibrating screen mesh has high quality ductility and toughness. When it is strong impacted and abrased, the surface will have a strong work-hardening due to the plastic deformation. And the surface hardness can be increased to more than HRC60 so that it can obtain the high wear resistance. While the interior remains high plasticity and toughness. When the old surface is worn and torn, the new surface will form a wear-resistant layer. The average life of manganese steel vibrating screens 4 to 8 times of ordinary screen.
Manganese steel vibrating screen mesh is widely used for screening all kinds size of sand, gravel, coal, stone, rock, metal material and other ore material in mining, quarry, aggregate industries.
Specifications
● Material: High tensile manganese steel.
● Wire diameter: 1.5mm - 14mm.
● Opening size: 2mm - 110mm.
● Hole type: Square mesh, rectangular mesh.
● Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
● Surface treatment: Galvanized before weave and galvanized after weave, painted.
● Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
 |  |

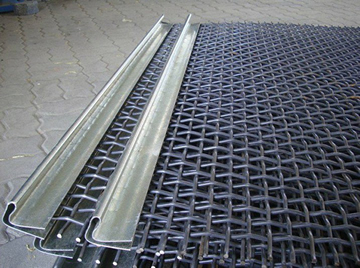

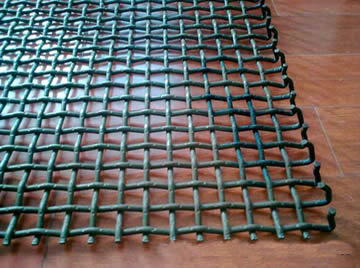

| Reinforced hook edge of manganese steel vibrating screen mesh. | Plain hook edge of manganese steel vibrating screen mesh. |
Features
● Precise construction, uniform opening.
● Excellent wear, corrosion and rust resistance.
● High quality ductility and toughness.
● 4 to 8 times longer life than ordinary screens.
Application
Manganese steel vibrating screen mesh can be used as the screen deck in the stone crushers, vibrating screens, and trommel screens.
Manganese steel vibrating screen mesh is widely used for screening all kinds size of sand, gravel, coal, stone, rock, metal material and
other ore material in mining, quarry, aggregate industries.
 |  |

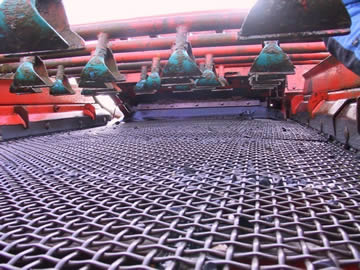

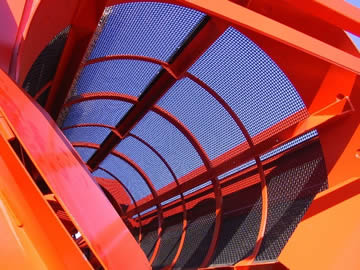

| Manganese steel vibrating screen mesh can be used as screen deck in the trommel screen. | Manganese steel vibrating screen mesh has high tensile strength to separate stones and other hard materials. |
