Shaker screen is one type wear parts for shale shaker and mud cleaner, for drilling mud solids control, mesh screen is installed on the first stage solids control equipments shale shaker used to separate out the large size drilling cutting, while on the mud cleaner, the mesh screen functioned samely, just the screen mesh is more fine. The screen panel is constructed with two or three stainless steel mesh layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hookstrip flat screens with mesh sizes ranging from 12 to 275.

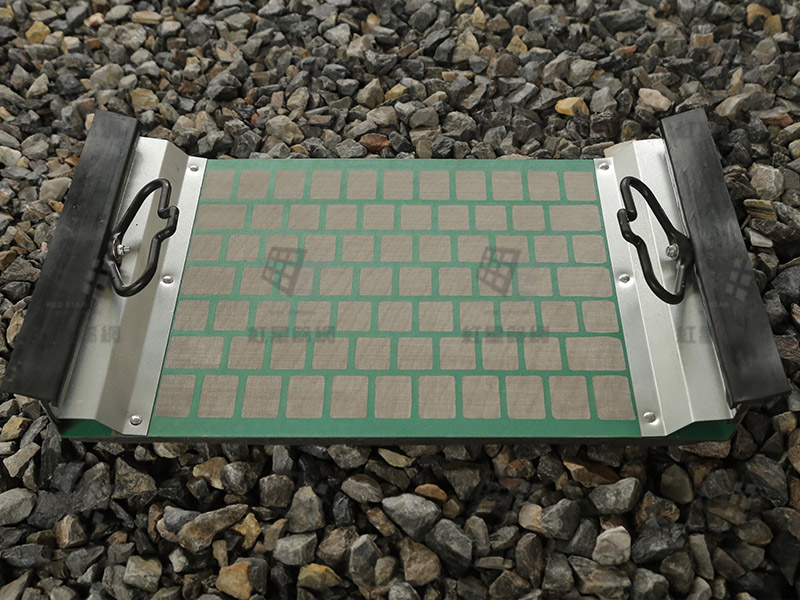

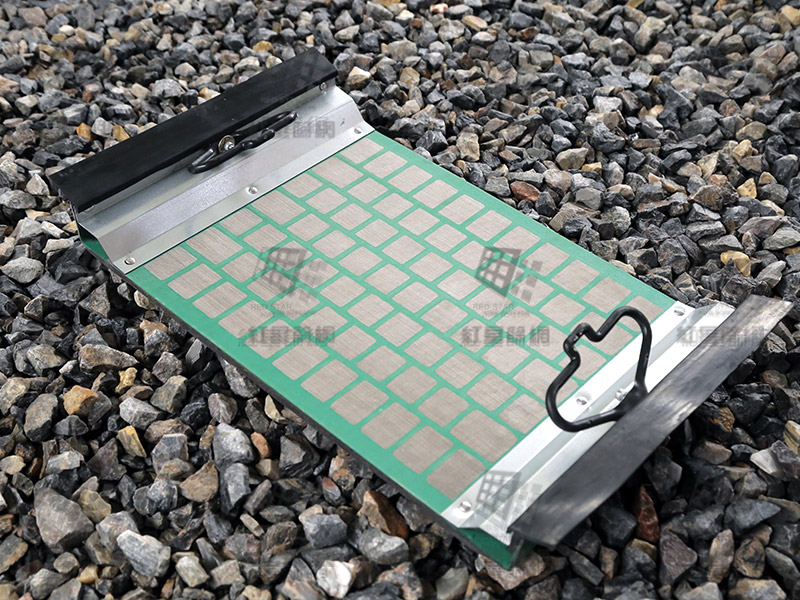

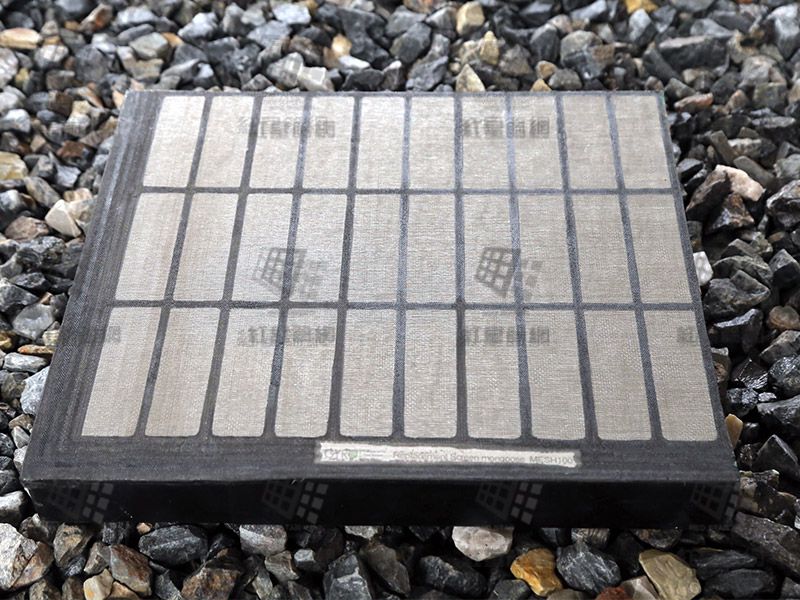

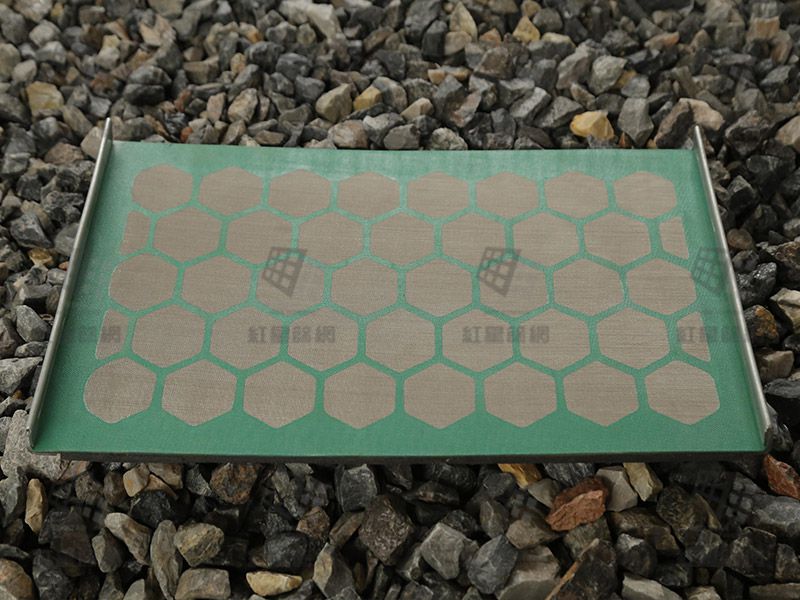

1）Plate Type Vibration Screen
Plate type vibration screen is one of the most frequent vibration screen,and be used in all kind of drilling operation.The screen is made of tow or three stainless steel meshes and metal backing with holes.We have a wealth of experience and mature technology in production,can also make creens according to customer requirements.
2）Awave Vibration Screen
Awave vibration screen has a awave screen surface,installation type can be hook edge or steel frame.the area of the awave screen is up to 125%-150% of the same area plate type screen,and the capacity increases a lot.We can also make creens according to customer requirements.

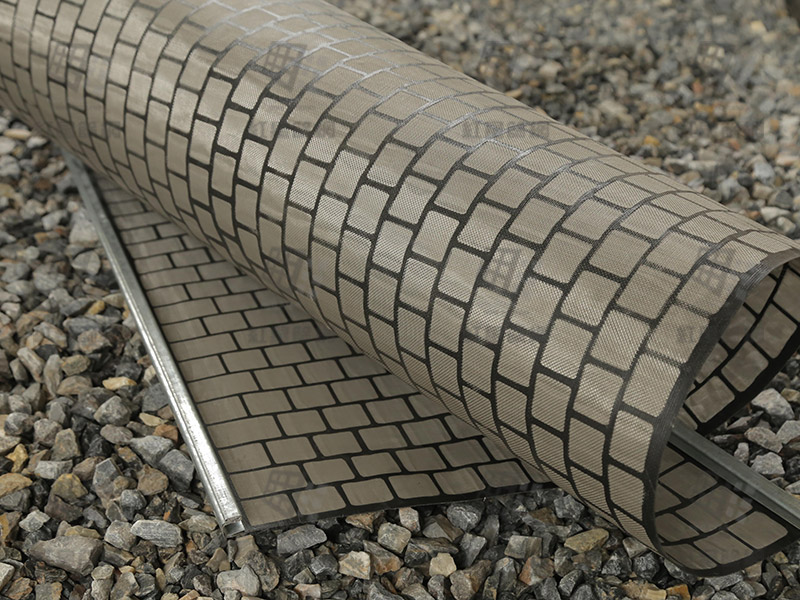

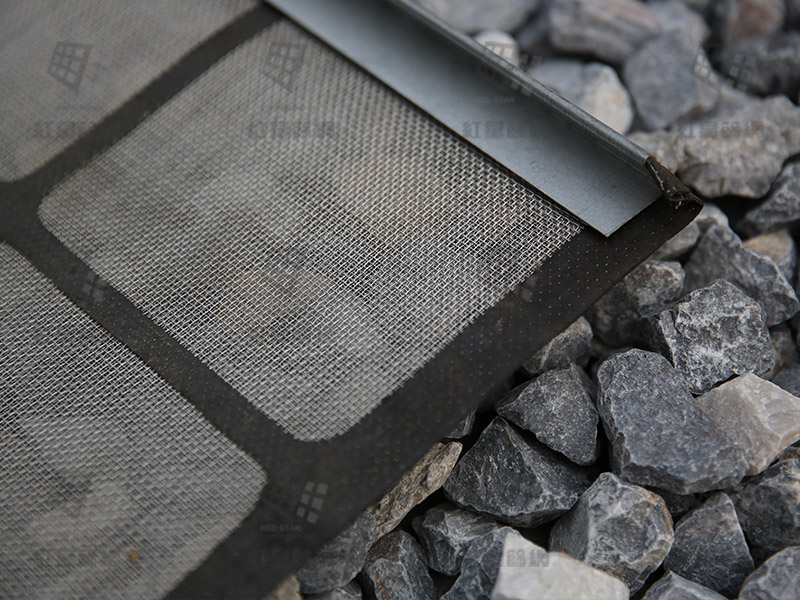

3）Hook Edge Soft Vibration Screen
Hook edge soft vibration screen has a same structure of plate type screen. The screen is usualy made of tow or three stainless steel meshes without metal backing.the area of soft screen is bigger than plate screen,and price is lower,but the service life is shorter. We can also make creens according to customer requirements.
Stainless steel wire mesh properties (characteristics)
Stainless steel wire mesh is widely been used because of it’s beneficial properties for industrial applications and architecture.
Stainless Steel Wire mesh can resist severe circumstances like; low/high temperatures, high pressures, acids, alkaline solutions, easily be fabricated with various weaving types in the weaving loom, and also have hygienic characteristics, easily clean ability, can withstand various weather conditions and have a highly aesthetic appeal,highly durable and can withstand severe circumstances over a longer period of time.
We guarantee that our stainless wire mesh have advance weaving technology,long wear life and international quality standard. to do the best quality commodity to our customer.
Wire diameter: Ø0.03 mm – 12.5mm
Mesh opening: 0,02 mm – 127mm
Mesh per inch: 0.2 – 500mesh
Color: Grey/metallic
Weaving Type: Plain weave, Twill weave and Dutch weave
Package: with roll or plain
Fine Stainless Steel Screen Cloths:
Material: SS304, SS304L, SS316, SS316L, and other SS alloy.
Wire: Ø 0.03mm-1mm
Mesh per inch: 1-500mesh

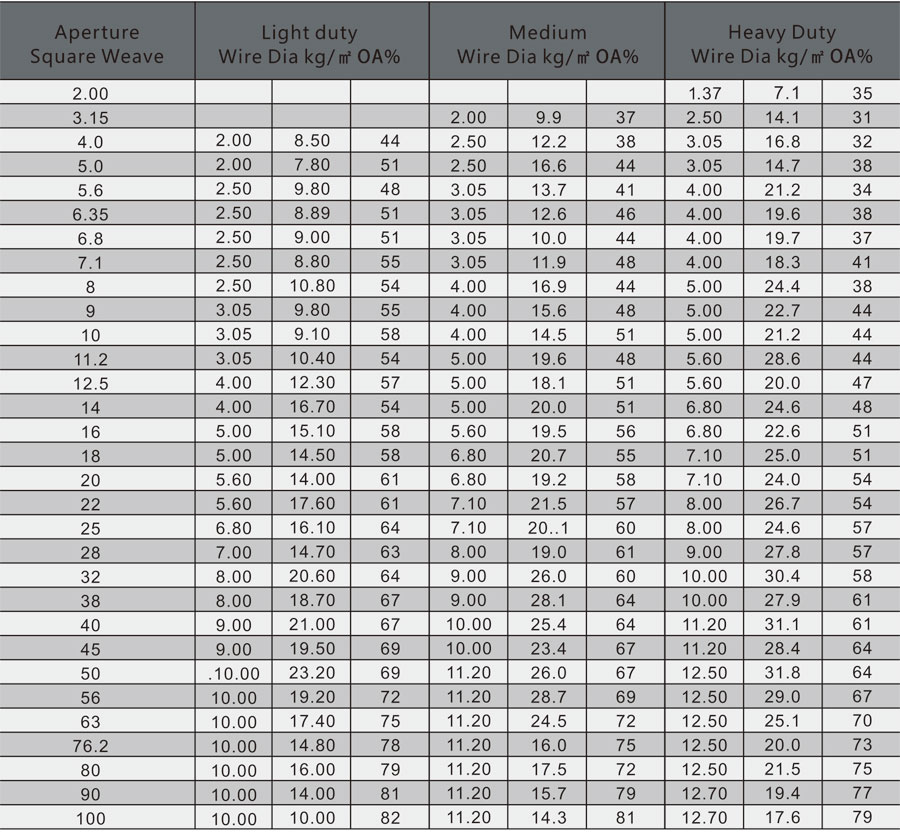

Thick Wire Stainless Steel Screens Cloths:
Material: SS304, SS304L, SS316, SS316L, and other SS alloy.
Wire diameter: Ø 1mm-12.5mm
